PGT104 - Digital Electronics
This course is Digital Electronics, offered by the Department of Electronics Engineering Technology.
The textbook for this course is Floyd's Digital Fundamentals (11th Edition at the moment).
Try my1digitaljs - a Basic Digital Electronics Simulator (notice, NOT logic simulator :p) that I have developed for PGT104. Based on SimCirJS, the source is available here. Some video guides are available on Youtube
Please note that this is a continuously updated site. Check the timestamps/dates (if any) to make sure that the information is applicable to current course implementation. Some information are from the previous ones.
Announcements
[20190130] Welcome to PGT104 Academic Session 2018/19 S2!
[20190226] Tentative date for Mid-Term is 21/03/2019 (THU)!
[20190307] Mid-Term Exam set on 19/03/2019 (TUE) @9.00pm
Lecture Slides
Applicable for Academic Session 2018/2019 Semester 2
- Lecture Part 0 - Course Introduction
- Lecture Part 1 - Introduction to Number Systems
- Lecture Part 2 - Logic Gates
- Lecture Part 3 - Boolean Algebra
- Lecture Part 4 - Combinational Logic Circuits
- Lecture Part 5 - Latches, Flip-flop and Timers
- Lecture Part 6 - Sequential Logic Circuits
Note: Textbook coverage is as follows…
Topic | Chapter | Sections |
---|---|---|
1 | 2 | (2.1)-(2.10) |
2 | 3 | (3.1)-(3.6) |
3 | 4 | (4.1)-(4.8) |
4 | 6 | (6.1)-(6.9) |
5 | 7 | (7.1)-(7.6) |
6 | 8-9 | (8.1)-(8.4), (9.2)-(9.3) |
Lab Notes
- Lab Work 4 - (Free sessions) Shift registers and counters (theory to practical)
Assignments
-
- Please attach this page (with your name and student ID) in front of your answer sheets.
- Due: 14/03/2019 (THU-W6-Lecture Session).
-
- Please attach this page (with your name and student ID) in front of your answer sheets.
- Due: 09/05/2019 (THU-W13-MY_ROOM@[S4-L1-70]-12PM).
Course Synopsis
Note: Written by the course coordinator when first offered
Introduction and discussion of fundamental of digital circuit design and analysis. The lecture and tutorial exercise covers the following topics: Boolean Algebra, Numbering System, Basic Logic Gates, Combinational Circuit Design, Timing Diagram, Bi-Stable Memory Device and Sequential Circuit Design.
Course Outcome
Note: These have been slightly re-written from the original/previous session
- CO1: Ability to describe numbering systems and boolean algebra
- CO2: Ability to analyze Boolean expressions and logic circuits for a simple digital system
- CO3: Ability to design combinational or sequential logic circuits for a simple digital system
Course Assessment
Examinations | Course Work | |||
---|---|---|---|---|
Total Contribution | 60% | 40% | ||
Assessment | Mid-Term | Final Exam | Assignments | Lab Assessments |
Contribution | 10% | 50% | 10% | 30% |
Course Syllabus
Week | Lecture | Laboratory | Notes |
---|---|---|---|
Week 01 |
| Lab Work 1 | Textbook: Chapter 2 |
Week 02 |
| Lab Work 1 (cont.) | Textbook: Chapter 3 |
Week 03 |
| Lab Work 2 | Textbook: Chapter 4 Assignment 1 Queue |
Week 04 |
| Lab Work 2 (cont.) | Textbook: Chapter 4 |
Week 05 |
| Lab Work 2 (cont.) | Textbook: Chapter 4 Assignment 1 Due (5%) |
Week 06 |
| Lab Work 2 (cont.) | Textbook: Chapter 6 Lab Assessment 1 (10%) |
Week 07 |
| Lab Work 2 (cont.) | Textbook: Chapter 6 Mid-term Examination (10%) |
Week 08 |
| Lab Work 2 (cont.) | Textbook: Chapter 6 |
Week 09 |
| Lab Work 3 | Textbook: Chapter 7 Assignment 2 Queue |
Week 10 |
| Lab Work 3 (cont.) | Textbook: Chapter 7 Lab Assessment 2 (10%) |
Week 11 |
| Lab Work 3 (cont.) | Textbook: Chapter 7 Assignment 2 Due (5%) |
Week 12 |
| Lab Work 3 (cont.) | Textbook: Chapter 8-9 |
Week 13 |
| Lab Work 3 (cont.) | Textbook: Chapter 8-9 |
Week 14 |
| Lab Work 3 (cont.) | Textbook: Chapter 8-9 Lab Assessment 3 (10%) |
Once Upon a Time in PGT104

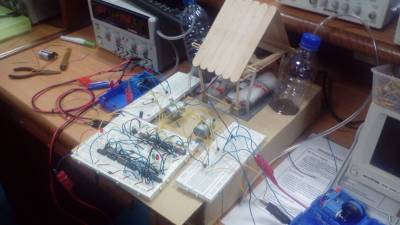

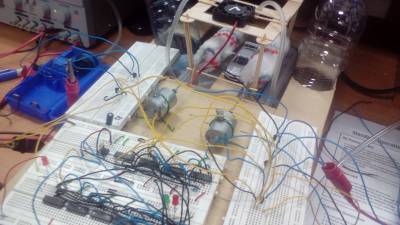

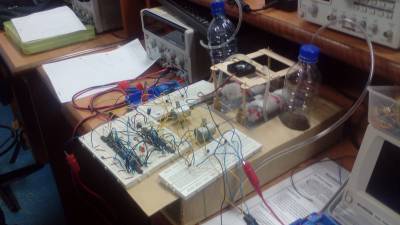

20170526 Project Demonstration: A Car-Wash System using a state-machine built with discrete logic gates
Short video clip (sorry, no audio)
Digital Electronic Lab Kit
- pgt104_labkit.txt
Basic Gates / IC: - 2 x 7400 - Quad 2-input NAND - 1 x 7404 - Hex INVERTER - 1 x 7408 - Quad 2-input AND - 1 x 7402 - Quad 2-input NOR - 1 x 7432 - Quad 2-input OR - 1 x 7486 - Quad 2-input XOR - 2 x 7474 - Dual D Flip-flop (async P/C) - 1 x 7476 - Dual JK Flip-flop (async P/C) - 1 x 555 - Timer Basic Components: - 4 x LED (Red/Green) - 4 x Push/Reset Button - 1 x 4-Way DIP Switch - 12 x 1k Resistor - 1 x 7-segment - 8 x 220ohm Resistor - 2 x 100k Resistor - 2 x 10k Resistor - 1 x 10uF Capacitor - 1 x 1uF Capacitor - 1 x 10nF Capacitor Prototyping: - Breadboard - Jumper wires (M-M) - @ 4 long wires for power - @ 8 medium length for inter-IC - @ 38 short length for direct wiring
Food for Thought
A more practical implementation of Digital Electronic Courses:
- Digital 1
- base-n numbering systems
- basic logic (truth table, boolean equation, boolean algebra, POS/SOP form)
- combinational logic (basic gates)
- combinational logic implementation (e.g. adder) ← just pick one example
- sequential logic (basic flip-flop)
- Digital 2 :
- combinational logic circuits (mux, decoder, encoder)
- practical application: e.g. instruction decoder, address decoding, etc.
- sequential logic circuits (registers, counters)
- practical application: e.g. program counter
- state machines
Note: If Digital 1 is seen as too light, the combinational logic circuits topic from 2 can be shifted into 1… then, some basic Computer Architecture stuffs can be put into 2.
Maybe something like this…
Digital Electronics 1 | |||
---|---|---|---|
Week | Lecture | Laboratory | Notes |
Week 01 - 03 |
| Comment1: Need to cover topic on Logic Gates as soon as possible in order to start with lab sessions. Comment2: Previous experience show students need more time on topics involving signed binaries. |
|
Week 04 - 07 |
| ||
Week 08 - 11 |
| ||
Week 12 - 14 |
| ||
Digital Electronics 2 | |||
Week | Lecture | Laboratory | Notes |
Week 01 - 02 |
| ||
Week 03 - 05 |
| ||
Week 06 - 07 |
| ||
Week 08 - 09 |
| ||
Week 10 - 12 |
| ||
Week 13 - 14 |
|
