Lab Work 2 (Part 2)

Adders and Comparators

One of the most useful combinational logic circuit is an adder. It is the core component of any Arithmetic Unit - used in binary multipliers and even floating-point arithmetic units. Meanwhile, a comparator is useful as a decision making circuitry - it usually compares the magnitude of two binary values.

Half-Adder

A half-adder sums two 1-bit values and provides two 1-bit values (sum and carry).

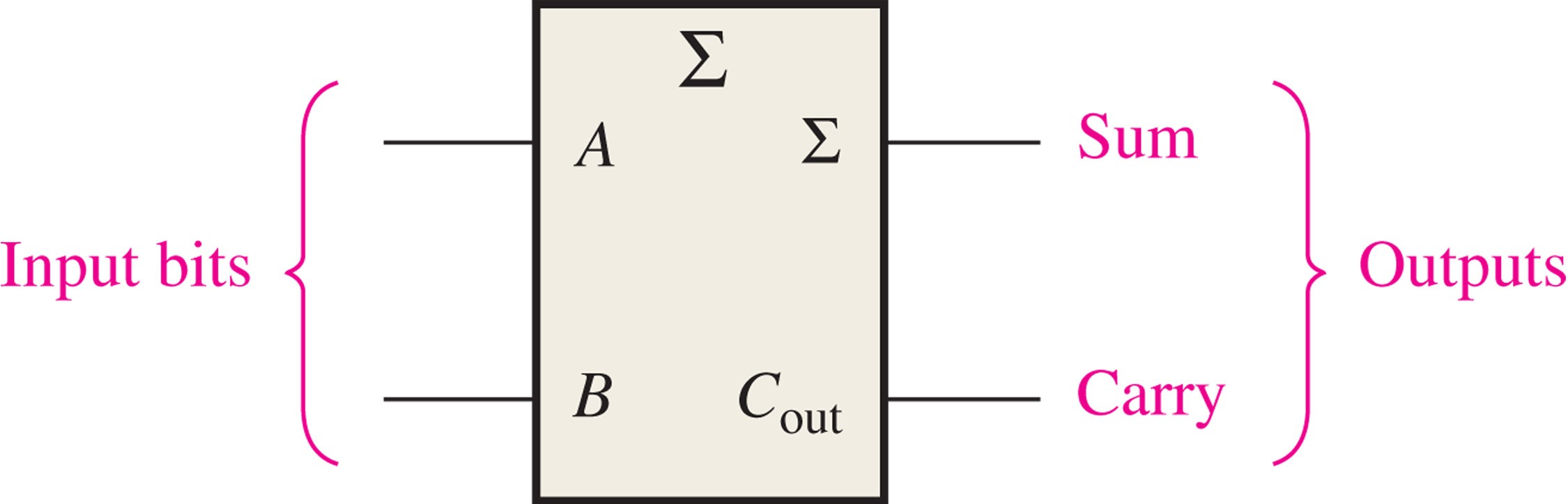

Half-Adder

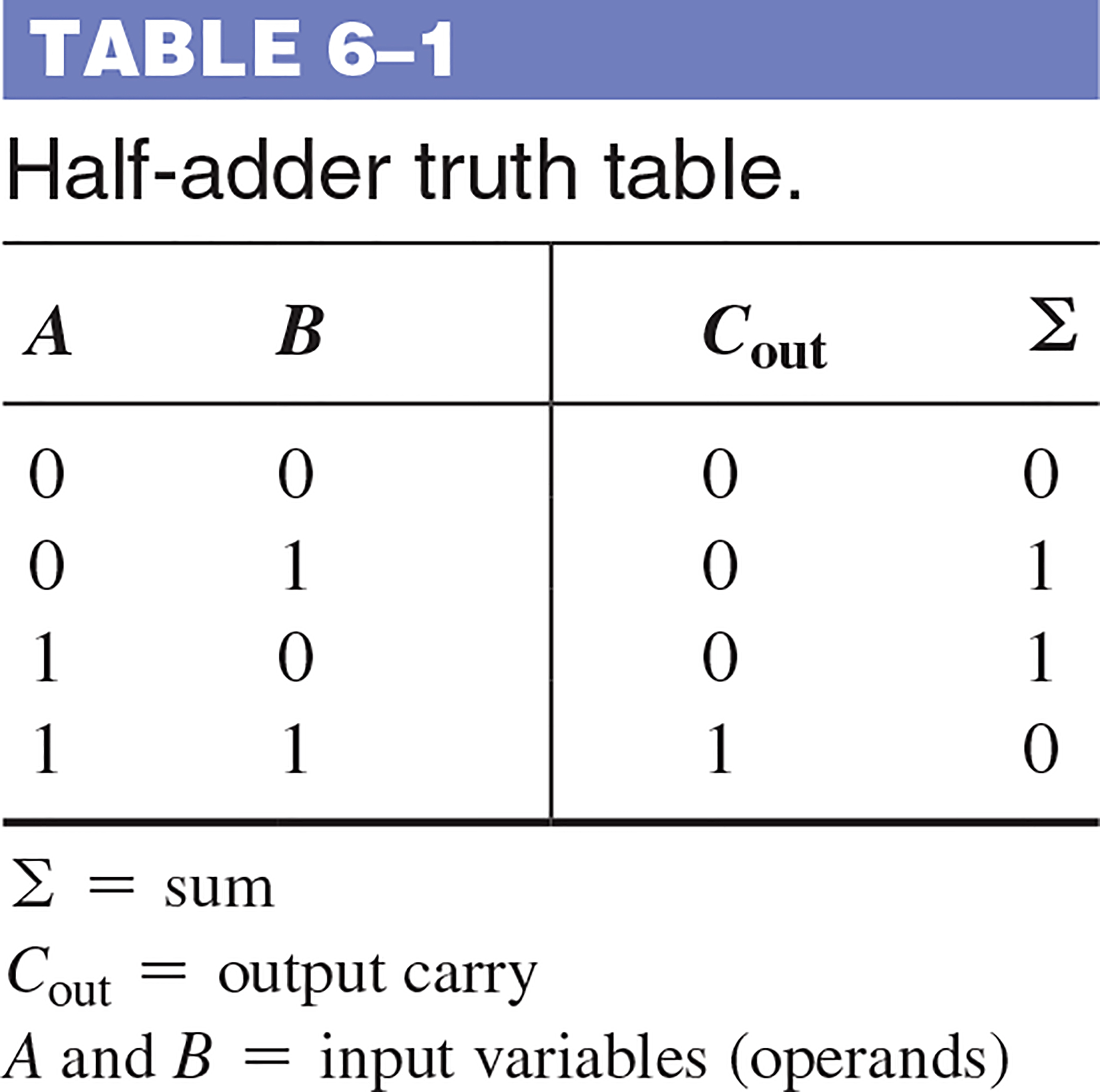

Symbol Truth Table
Block Symbol Truth Table

Disclaimer: The images above are extracted from resources available for Digital Fundamentals 11th Edition (Global Edition)

Full-Adder

A full-adder sums three 1-bit values and provides two 1-bit values (sum and carry).

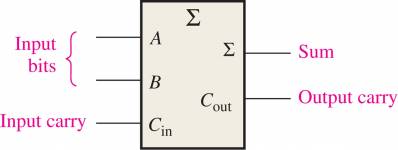

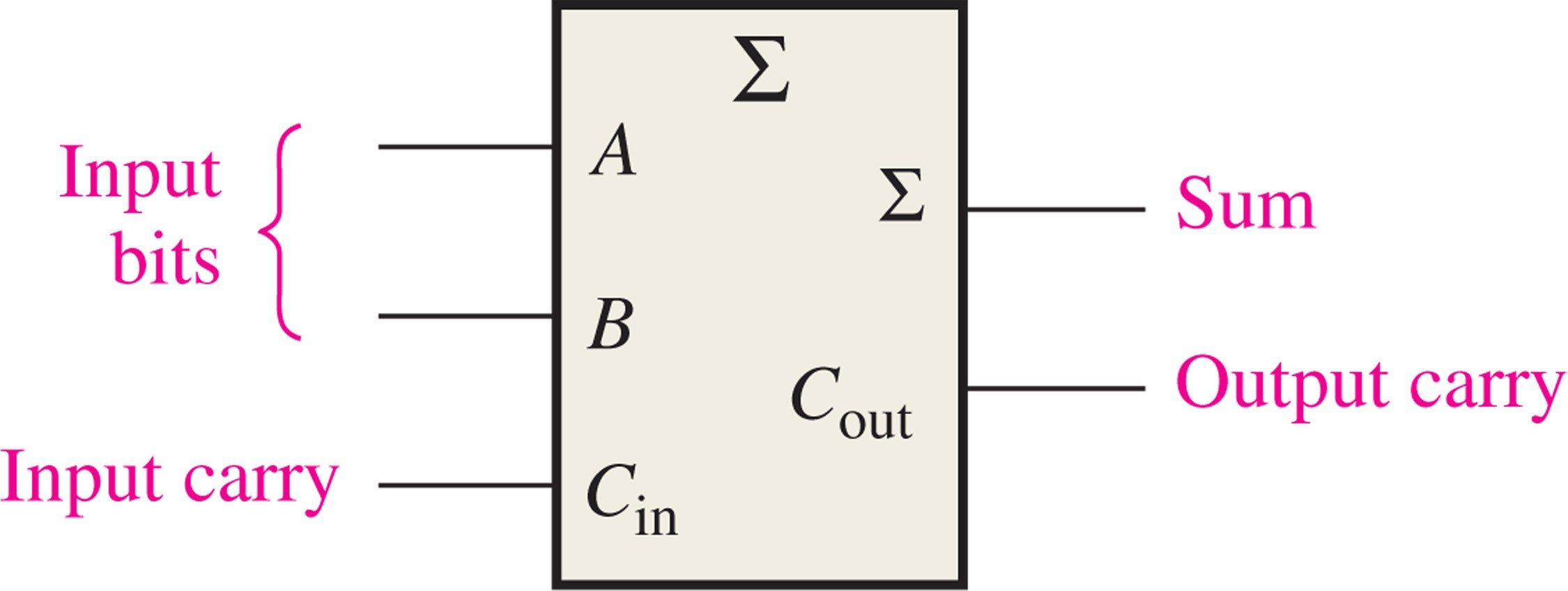

Full-Adder
Symbol Truth Table
Block Symbol Truth Table

Disclaimer: The images above are extracted from resources available for Digital Fundamentals 11th Edition (Global Edition)

Comparator

There are three possible output bits of a comparator (depending on application requirement): equality (==), less than (<) and greater than (>).

Comparator Output Description
EQ (==) Output is at logic HI when the first value is exactly the same as the second value
LT (<) Output is at logic HI when the first value is less than the second value
GT (>) Output is at logic HI when the first value is greater then the second value

Truth Table for a 1-bit Comparator:

A B EQ LT GT
0 0 1 0 0
0 1 0 1 0
1 0 0 0 1
1 1 1 0 0

Note: A 2-bit comparator cannot be built by simply cascading two 1-bit logic circuits.

Things To Do

THING 1 Build a 1-bit half-adder circuit and verify.

THING 2 Build a 1-bit full-adder circuit using 2×1-bit half-adders. Verify. Trivia: What is the least number of ICs (of 2-input logic gates) needed to implement this?

THING 3 (Optional?) Build a 2-bit adder and verify.

THING 4 (Optional?) Construct a truth table for 1-bit subtractor. Build the circuit and verify.

THING 5 (Optional?) Build a 4-bit ripple carry adder and verify.

THING 6 (Optional?) Build a 4-bit carry look ahead (CLA) adder and verify.

THING 7 Construct a truth table for 2-bit comparator (3 outputs). Get the Boolean expression for each output. Build the circuit and verify.

THING 8 (Optional?) Build a 4-bit comparator (3 outputs) and verify.

ask your instructor for more…
